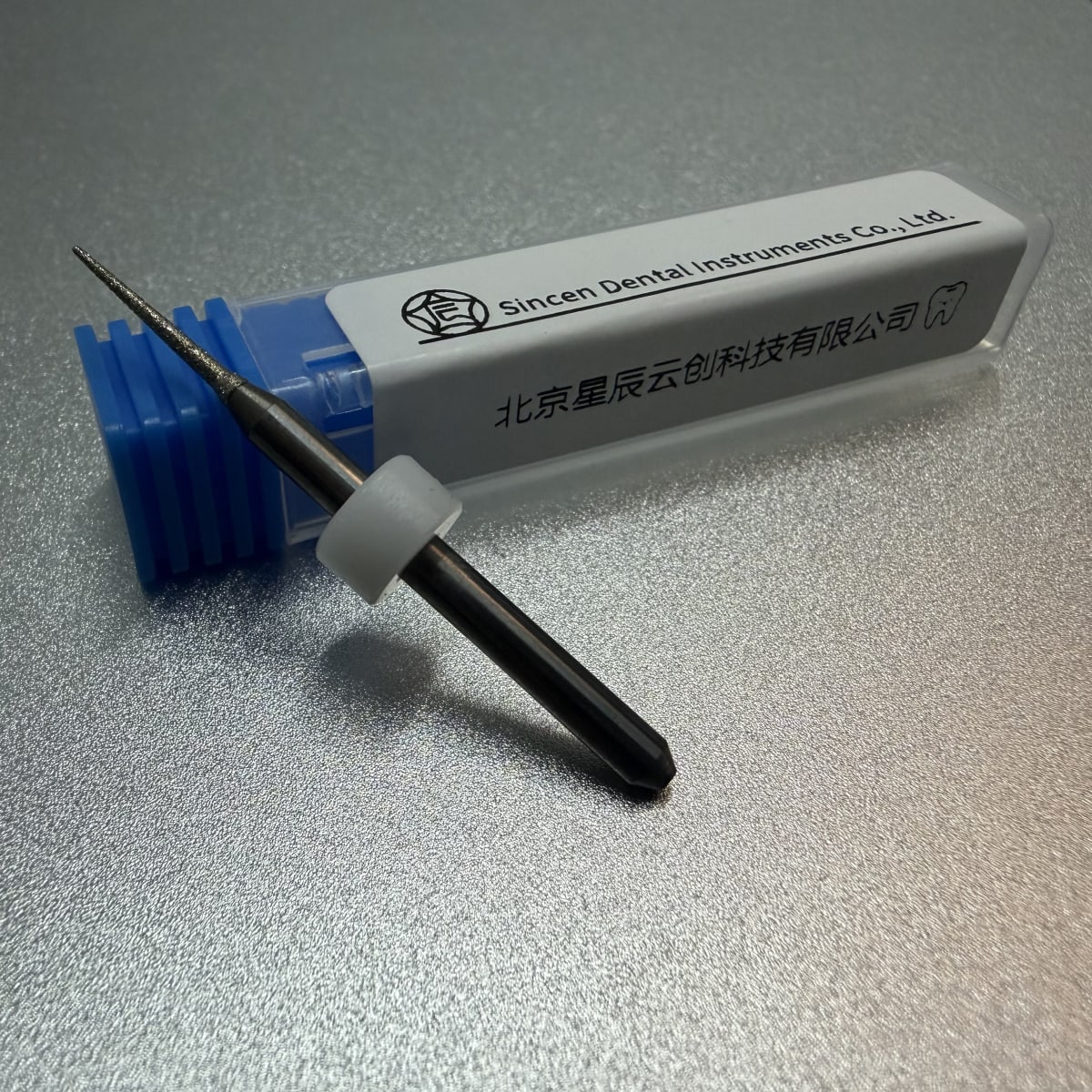

Diamond-coated milling burs for Shendiao wet milling machines, designed for machining lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. Available in three head diameters with φ3.175 mm smooth collet-clamped shanks, they support chairside or lab production of single crowns, inlays, onlays, veneers, and anterior bridges.
| Compatible Machines | Shendiao |
|---|---|
| Interface Type | φ3.175mm Smooth Shank |
| Material Category | Glass Ceramic |
| Configurations | 3 |
| Order No | Specification | Head Ø | Neck | Shank | Length | Inquiry |
|---|---|---|---|---|---|---|
| G-3.175-0.6 | φ0.6×TL12×φ3.175×L45 | 0.6 | 12 | 3.175 | 45 | 1 |
| G-3.175-1.0 | φ1.0×TL10×φ3.175×L45 | 1 | 10 | 3.175 | 45 | 1 |
| G-3.175-2.5 | φ2.5×TL16×φ3.175×L45 | 2.5 | 16 | 3.175 | 45 | 1 |
The φ2.5 mm head diameter is suited to roughing and bulk material removal; the φ1.0 mm head suits intermediate contouring; the φ0.6 mm head is for fine finishing of occlusal anatomy, margins, and interdental areas.
These burs are not intended for dry milling, metals, zirconia, or any material other than the glass ceramics listed.
All three configurations use a φ3.175 mm smooth shank that is clamped by a collet in Shendiao milling machines. They do not use a threaded shank.
These burs are designed for Shendiao milling machines that accept φ3.175 mm smooth shank tools and support wet milling of glass ceramics. Always check your machine's tool holder specification before use.
The φ2.5 mm head is suited to roughing and bulk material removal. The φ1.0 mm head handles intermediate contouring. The φ0.6 mm head is used for fine details and finishing of occlusal anatomy, margins, and interdental areas.
They are intended for glass ceramics: lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. They are not intended for metals, zirconia, or composite materials unless the manufacturer states otherwise.
Watch for signs such as visible loss of diamond coating on the cutting section, chipping or edge defects on the milled restoration, increased milling time, or a change in milling sound. Replace the bur when these signs appear rather than relying on a fixed number of units.
These are aftermarket burs manufactured by SINCEN Dental, designed to be compatible with Shendiao milling machines that use φ3.175 mm smooth shank tools for wet glass ceramic milling.
No. These burs are designed for wet milling of glass ceramics. Dry milling can cause overheating, coating damage, and poor surface quality.
