SINCEN Dental diamond-coated milling burs for Roland wet milling machines, designed for chairside and lab processing of lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. Four configurations with a φ3mm smooth collet-clamped shank support single crowns, inlays, onlays, veneers, and anterior bridges. Diamond coating provides wear resistance for glass ceramic milling.
| Compatible Machines | Roland |
|---|---|
| Interface Type | φ3mm Smooth Shank |
| Material Category | Glass Ceramic |
| Configurations | 4 |
| Order No | Specification | Head Ø | Neck | Shank | Length | Inquiry |
|---|---|---|---|---|---|---|

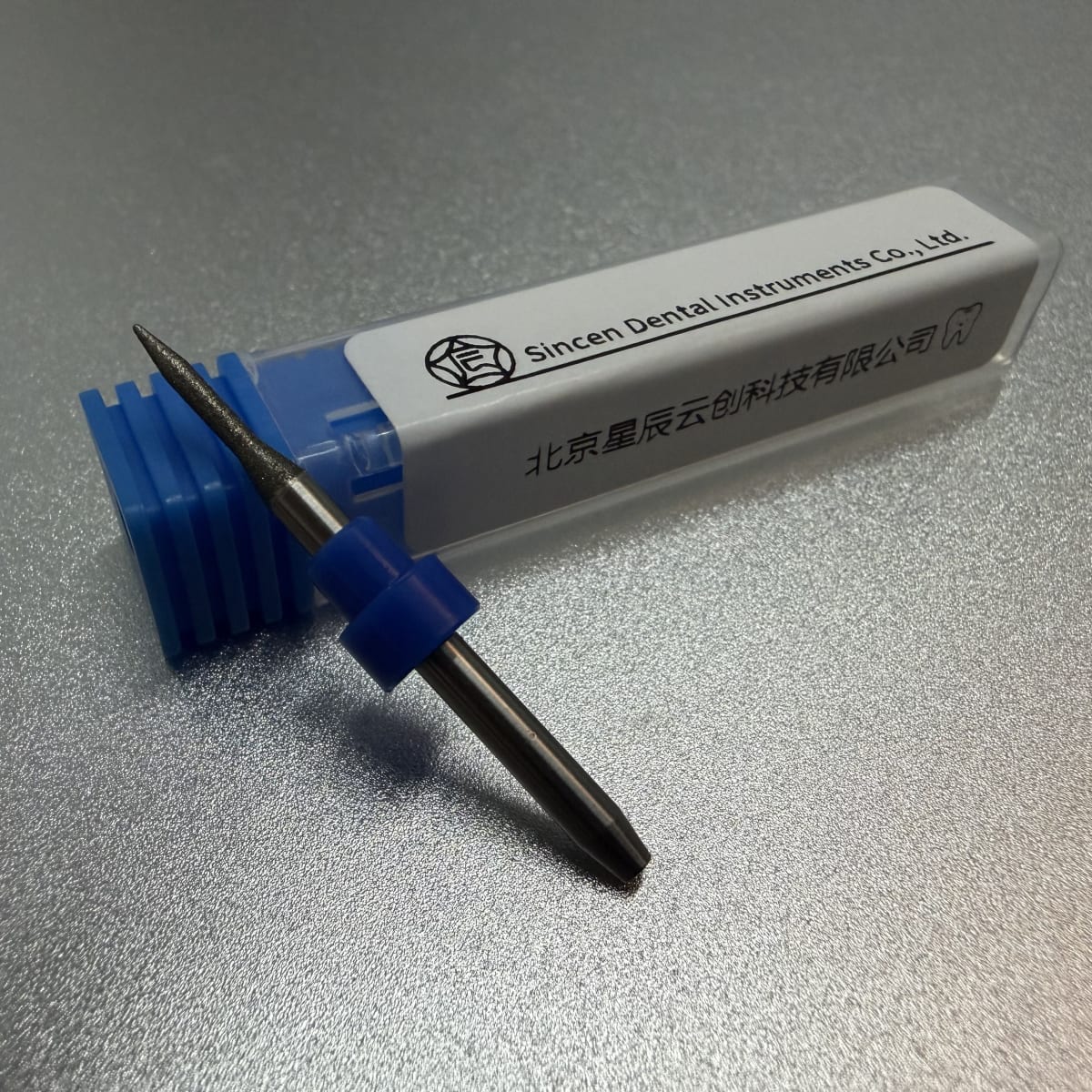

| G-3-0.6 | φ0.6×TL9×φ3×L40 | 0.6 | 9 | 3 | 40 | 1 |

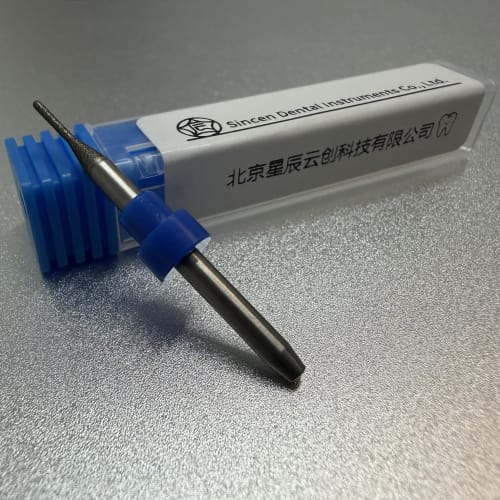

| G-3-1.0 | φ1.0×TL6×φ3×L40 | 1 | 6 | 3 | 40 | 1 |

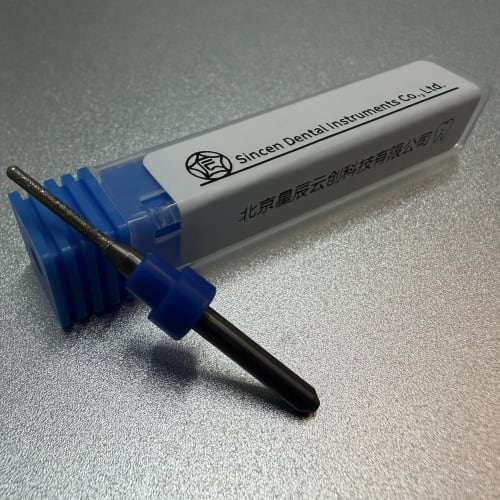

| G-3-1.5 | φ1.5×TL11×φ3×L40 | 1.5 | 11 | 3 | 40 | 1 |

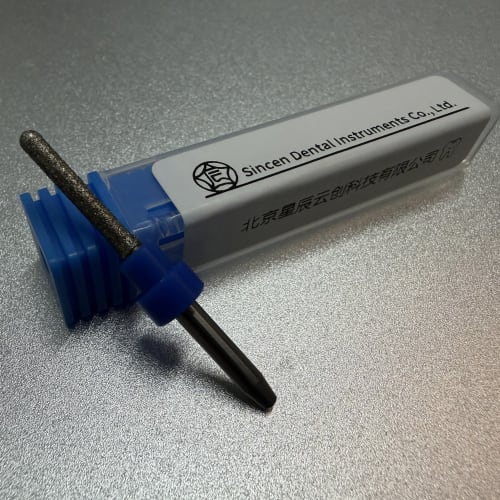

| G-3-2.5 | φ2.5×TL15×φ3×L40 | 2.5 | 15 | 3 | 40 | 1 |
φ2.5mm and φ1.5mm head diameters suit roughing and bulk material removal. φ1.0mm and φ0.6mm head diameters suit finishing, fine detail, and occlusal anatomy.
These burs are not intended for metal, dry milling, or machines that require threaded shanks such as Sirona CEREC MC, MC X, MC XL, or CEREC 3.
All four configurations use a φ3mm smooth shank that is collet-clamped in the Roland machine spindle.
No. Sirona CEREC MC, MC X, and MC XL use a proprietary M3.5 threaded shank, not a φ3mm smooth shank. CEREC 3 uses M1.8. These SINCEN burs are designed for Roland machines with φ3mm collet clamping.
They are intended for wet milling of lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo glass ceramics.
Larger diameters (φ2.5mm, φ1.5mm) are suited for roughing and bulk material removal, while smaller diameters (φ1.0mm, φ0.6mm) are suited for finishing, fine detail, and occlusal anatomy.
Watch for visual loss of diamond coating on the cutting portion, increased milling time, rougher surface finish on restorations, or chipping of the glass ceramic material. Replace the bur when these signs appear.
These are SINCEN Dental aftermarket burs manufactured to fit Roland machines with a φ3mm collet-clamped shank. They are not original Roland parts.
Typical restorations include single crowns, inlays, onlays, veneers, and anterior bridges in the supported glass ceramic materials.
