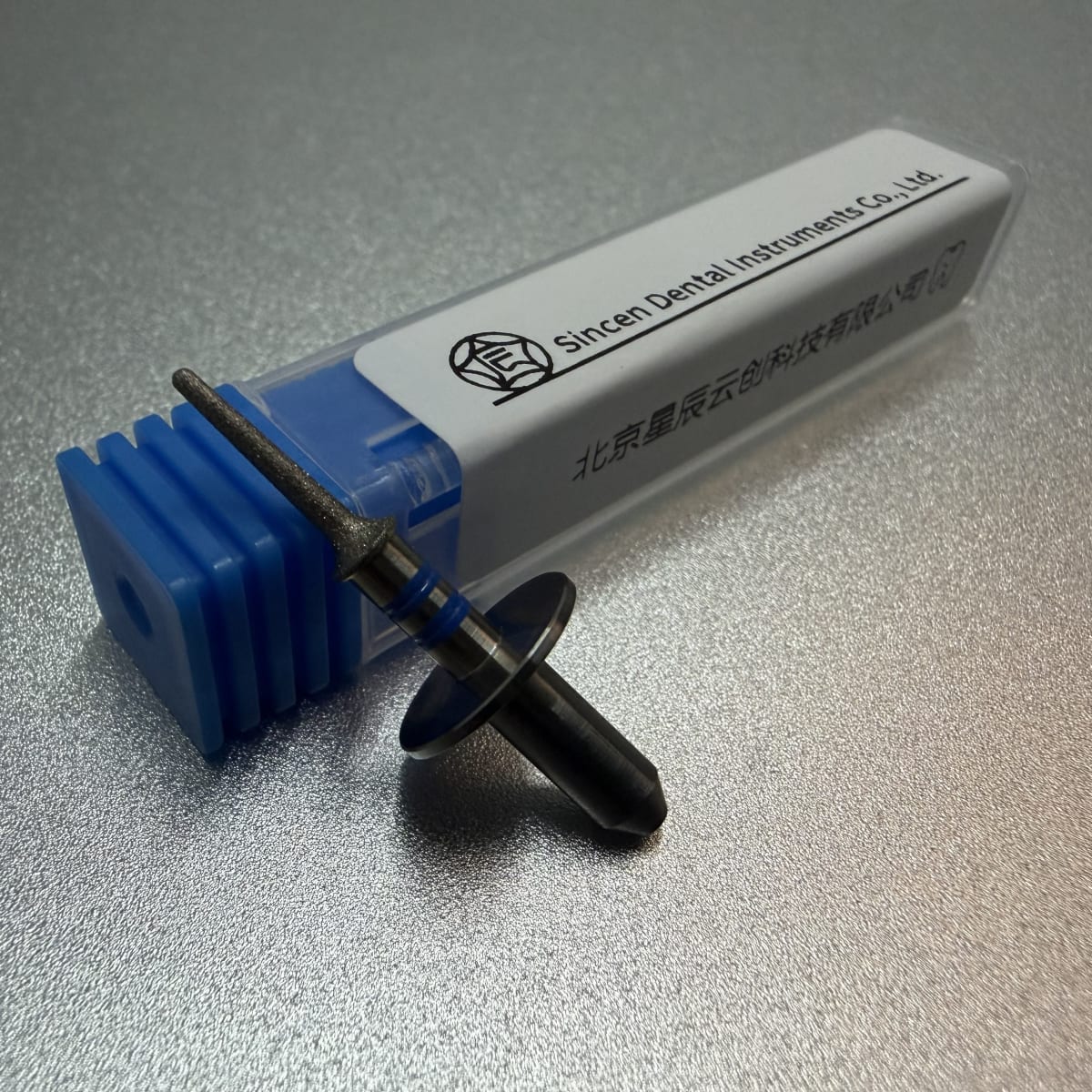

SINCEN Dental offers diamond-coated milling burs for Planmeca milling machines, designed for wet milling of glass ceramics including lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. These burs produce single crowns, inlays, onlays, veneers, and anterior bridges. Available in three configurations with φ4mm smooth shank (collet-clamped) and TL11×φ4×L31 dimensions.
| Compatible Machines | Planmeca |
|---|---|
| Interface Type | φ4mm Smooth Shank |
| Material Category | Glass Ceramic |
| Configurations | 3 |
| Order No | Specification | Head Ø | Neck | Shank | Length | Inquiry |
|---|---|---|---|---|---|---|
| G-blue Stripe | TL11×φ4×L31 | — | 11 | 4 | 31 | 1 |
| G-White Stripe | TL11×φ4×L31 | — | 11 | 4 | 31 | 1 |
| G-Yellow Stripe | TL11×φ4×L31 | — | 11 | 4 | 31 | 1 |
Each stripe-coded configuration (G-blue, G-white, G-yellow) is matched to a specific milling stage in the Planmeca tool library. Follow your CAM strategy for bur selection at each stage.
These burs are not for milling metals, zirconia, or any dry milling application.
All three configurations use a φ4mm smooth shank (collet-clamped). This is not a threaded shank and is not compatible with Sirona CEREC MC/MC X/MC XL machines that require M3.5 threaded shanks or CEREC 3 machines that require M1.8.
They are intended for glass ceramics: lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. They are not for metals, zirconia, or dry milling.
These burs fit Planmeca milling machines that accept φ4mm smooth shank (collet-clamped) tools with TL11×φ4×L31 dimensions. Always verify your specific Planmeca model's tool holder requirements before ordering.
The stripe color identifies different cutting geometries within the set. Refer to your milling strategy or CAM tool library for the recommended bur at each milling stage.
Replace when you observe visible loss of diamond coating on the cutting surface, increased milling time, rough or chipped restoration margins, or audible vibration during cutting. There is no fixed number of units per bur; wear depends on material type, milling parameters, and coolant condition.
No, these are aftermarket burs manufactured by SINCEN Dental to be compatible with Planmeca milling machines. They are not produced by Planmeca.
No. These burs are designed for wet milling only. Dry milling glass ceramics with these burs is not supported and may cause premature wear or tool damage.
