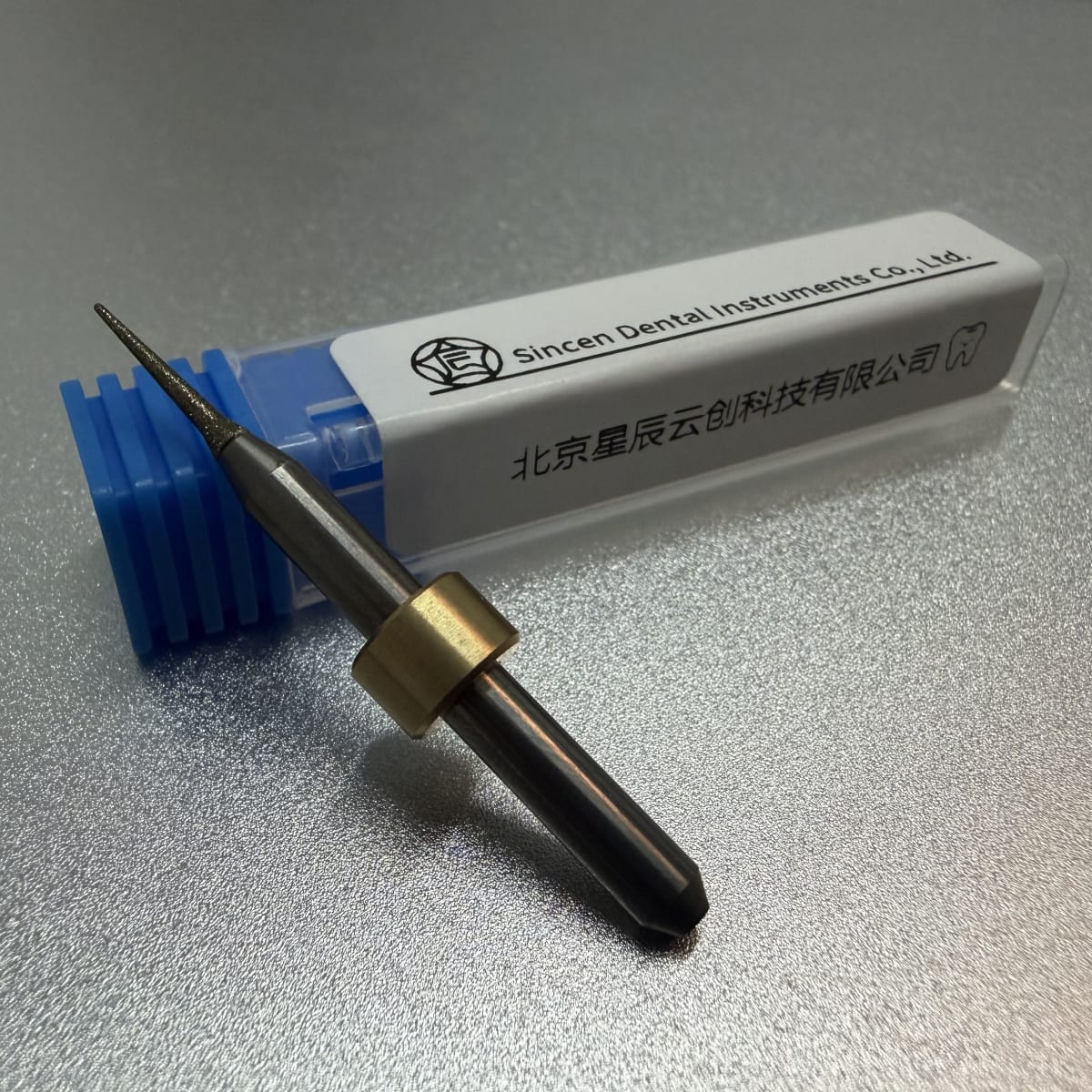

SINCEN Dental Ideal compatible glass ceramic milling burs are diamond-coated rotary instruments for wet milling of lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. Designed for chairside or lab production of single crowns, inlays, onlays, veneers, and anterior bridges, these burs feature a φ4mm smooth shank for collet-clamped Ideal milling machines and are offered in three head-diameter configurations.
| Compatible Machines | Ideal |
|---|---|
| Interface Type | φ4mm Smooth Shank |
| Material Category | Glass Ceramic |
| Configurations | 3 |
| Order No | Specification | Head Ø | Neck | Shank | Length | Inquiry |
|---|---|---|---|---|---|---|
| G-4-0.6 | φ0.6×TL10×φ4×L45 | 0.6 | 10 | 4 | 45 | 1 |
| G-4-1.0 | φ1.0×TL10×φ4×L45 | 1 | 10 | 4 | 45 | 1 |
| G-4-2.0 | φ2.0×TL13×φ4×L45 | 2 | 13 | 4 | 45 | 1 |
The φ0.6mm head diameter is suited for finishing and fine detail work on tight internal geometries, while the φ1.0mm and φ2.0mm head diameters are suited for roughing and broader material removal in glass ceramic restorations.
These burs are not for milling metals, zirconia, or any material outside the listed glass ceramics, and they are not for dry milling.
These burs use a φ4mm smooth shank that is collet-clamped. They are not threaded and are not compatible with Sirona CEREC MC, MC X, or MC XL machines that require a proprietary M3.5 threaded shank.
No. Sirona CEREC MC, MC X, and MC XL use a proprietary M3.5 threaded shank, and CEREC 3 uses M1.8. These Ideal compatible burs have a φ4mm smooth shank and are intended for Ideal milling machines only.
The φ0.6mm head is suited for fine detail and tight internal geometries. The φ1.0mm head offers a balance of detail and material removal. The φ2.0mm head is suited for larger material removal and broader surfaces. Select based on the restoration geometry and milling stage.
Monitor for visible loss of diamond coating on the cutting head, increased milling time, rougher surface finish on the milled restoration, or chipping of the workpiece material. These are signs that the bur may need replacement.
No. These burs are designed for wet milling of glass ceramics. Dry milling is not recommended and may lead to overheating, coating damage, or poor restoration quality.
No. These burs are intended for glass ceramic materials such as lithium disilicate, feldspathic ceramic, Vita Suprinity, and Celtra Duo. They are not designed for metal or zirconia milling.
These are SINCEN Dental aftermarket burs designed to be compatible with Ideal milling machines. They are not original equipment manufacturer (OEM) burs.
