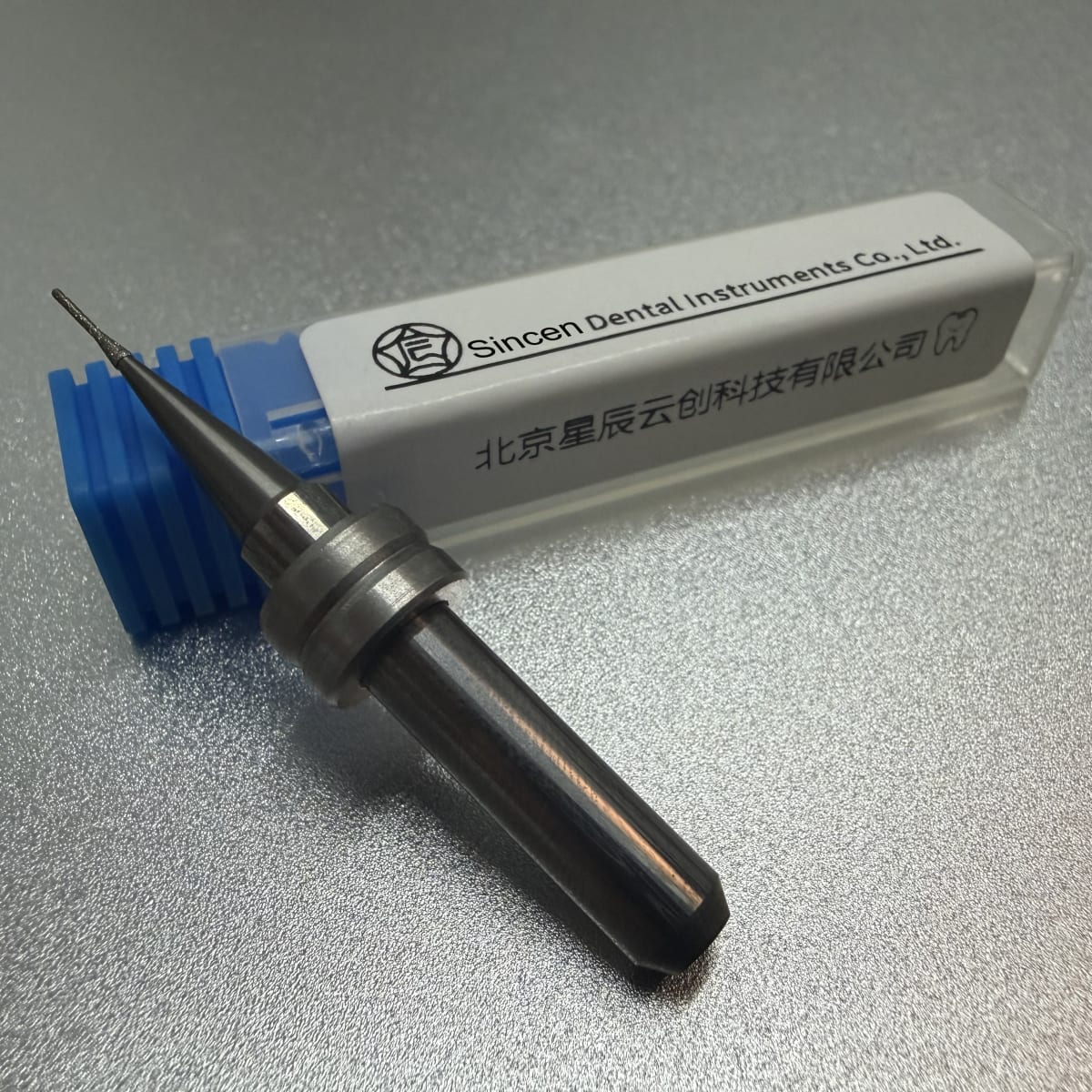

SINCEN diamond-coated milling burs for Elosdent systems are designed for wet milling of glass ceramics including lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. Available in four head diameters with φ6mm smooth collet-clamped shanks, they support single crowns, inlays, onlays, veneers, and anterior bridges in chairside or lab workflows.
| Compatible Machines | Elosdent |
|---|---|
| Interface Type | φ6mm Smooth Shank |
| Material Category | Glass Ceramic |
| Configurations | 4 |
| Order No | Specification | Head Ø | Neck | Shank | Length | Inquiry |
|---|---|---|---|---|---|---|
| G-6-0.6 | φ0.6×TL5×φ6×L50 | 0.6 | 5 | 6 | 50 | 1 |
| G-6-1.0 | φ1.0×TL8×φ6×L50 | 1 | 8 | 6 | 50 | 1 |
| G-6-2.0 | φ2.0×TL15×φ6×L50 | 2 | 15 | 6 | 50 | 1 |
| G-6-2.5 | φ2.5×TL15×φ6×L50 | 2.5 | 15 | 6 | 50 | 1 |
The φ0.6 and φ1.0 head diameters are suited to finishing and fine detail work such as occlusal anatomy, margins, and tight interproximal areas. The φ2.0 and φ2.5 head diameters are suited to roughing and bulk material removal in larger restorations.
These burs are not for milling metals, zirconia, composites, or for dry milling applications; they are specified only for wet milling of the listed glass ceramic materials on Elosdent-compatible φ6mm collet-clamped spindles.
All four configurations use a φ6mm smooth shank that is collet-clamped. They do not use a threaded shank.
No. Sirona CEREC MC, MC X, and MC XL use a proprietary M3.5 threaded shank, and CEREC 3 uses M1.8. These SINCEN burs have a φ6mm smooth shank for Elosdent-compatible systems and are not interchangeable with threaded-shank CEREC spindles.
They are specified for wet milling of glass ceramics: lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo.
Smaller diameters (φ0.6, φ1.0) are suited to fine detail and tight internal features, while larger diameters (φ2.0, φ2.5) are suited to bulk material removal and larger contours. Selection depends on the milling stage and the geometry of the restoration.
Watch for visible loss of diamond coating on the cutting surfaces, increased milling time, rougher surface finish on the workpiece, chipping or edge defects on milled ceramic, and higher spindle load or vibration during milling.
No. These are SINCEN aftermarket burs manufactured to fit Elosdent-compatible φ6mm collet-clamped spindles. They are not produced by Elosdent.
Typical restorations include single crowns, inlays, onlays, veneers, and anterior bridges in the supported glass ceramic materials.
