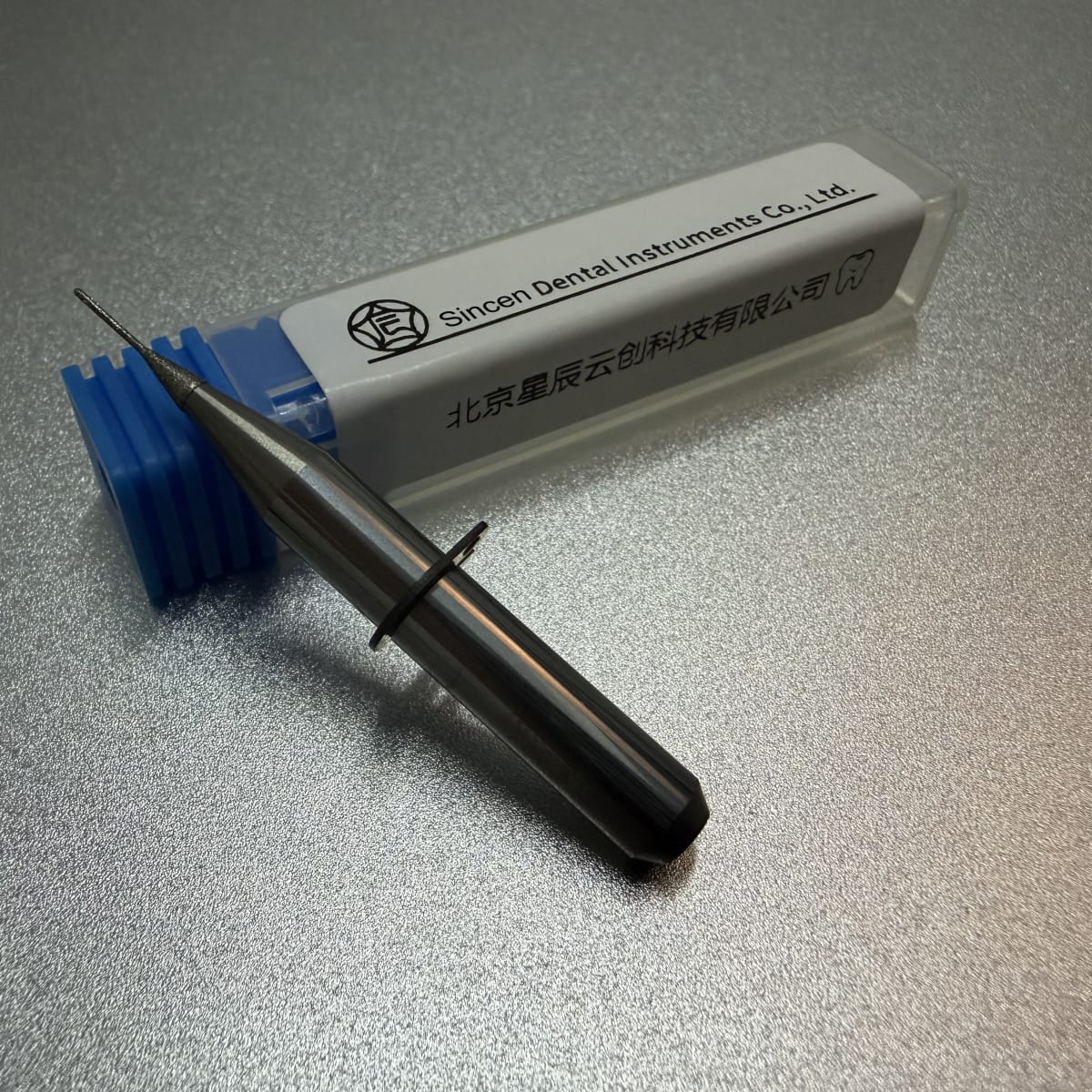

Cradle-compatible diamond-coated milling burs with a 6 mm smooth collet-clamped shank, designed for wet milling of glass ceramics including lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. Four head diameters support chairside or lab production of single crowns, inlays, onlays, veneers, and anterior bridges.
| Compatible Machines | B42, B42 UPCERA FLNTMill B41, B42 UPCERA FLNTMill B41, Cradle B41 |
|---|---|
| Interface Type | φ6mm Smooth Shank |
| Material Category | Glass Ceramic |
| Configurations | 4 |
| Order No | Specification | Head Ø | Neck | Shank | Length | Inquiry |
|---|---|---|---|---|---|---|
| G-6-0.6 | φ0.6×TL6×φ6×L50 | 0.6 | 6 | 6 | 50 | 1 |
| G-6-1.0 | φ1.0×TL10×φ6×L50 | 1 | 10 | 6 | 50 | 1 |
| G-6-2.0 | φ2.0×TL16×φ6×L50 | 2 | 16 | 6 | 50 | 1 |
| G-6-2.5 | φ2.5×TL15×φ6×L50 | 2.5 | 15 | 6 | 50 | 1 |
The 0.6 mm and 1.0 mm diameters are suited for finishing and fine detail work; the 2.0 mm and 2.5 mm diameters are suited for roughing and bulk material removal.
These burs are not intended for metal, dry milling, or machines that require a threaded shank such as Sirona CEREC MC, MC X, or MC XL.
All variants use a 6 mm diameter smooth shank that is clamped by a collet. This is not compatible with Sirona CEREC MC, MC X, or MC XL machines, which require a proprietary M3.5 threaded shank.
They are compatible with Cradle 6mm shank systems, including Cradle B41/B42 and UPCERA FLNTMill B41/B42 machines.
They are intended for glass ceramics: lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo.
Smaller diameters (0.6 mm and 1.0 mm) are suited for fine detail and finishing passes, while larger diameters (2.0 mm and 2.5 mm) are suited for bulk material removal and roughing passes.
Watch for visible loss of diamond coating on the cutting edges, increased milling time, rougher surface finish on restorations, or chipping of the workpiece edge. Replace the bur when these signs appear.
No, these are aftermarket burs made by SINCEN Dental, a milling bur manufacturer, for use in Cradle-compatible machines.
No, they are specified for wet milling only. Dry milling is outside the intended application.
