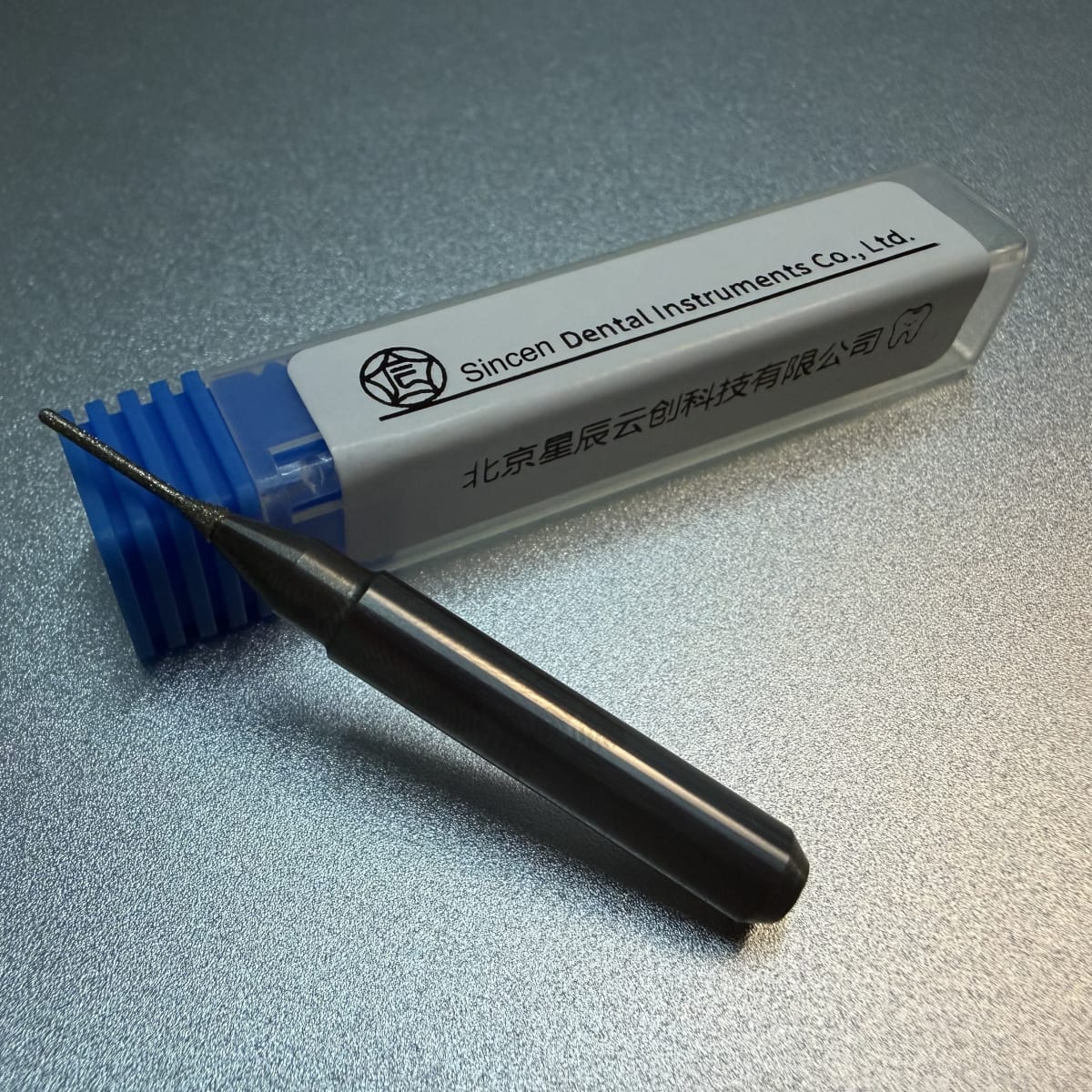

ARUM-compatible (6mm shank) diamond-coated milling burs for wet machining of glass ceramics including lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. Four head diameters (1.0, 1.5, 2.0, 2.5 mm) cover roughing and finishing for single crowns, inlays, onlays, veneers, and anterior bridges on ARUM 5X Series and Axsys Versamill 5X Series machines.
| Compatible Machines | ARUM 5X Series, Axsys Versamill 5X Series |
|---|---|
| Interface Type | φ6mm Smooth Shank |
| Material Category | Glass Ceramic |
| Configurations | 4 |
| Order No | Specification | Head Ø | Neck | Shank | Length | Inquiry |
|---|---|---|---|---|---|---|
| G-6-1.0 | φ1.0×TL10.5×φ6×L50 | 1 | 10.5 | 6 | 50 | 1 |
| G-6-1.5 | φ1.5×TL12×φ6×L50 | 1.5 | 12 | 6 | 50 | 1 |
| G-6-2.0 | φ2.0×TL12×φ6×L50 | 2 | 12 | 6 | 50 | 1 |
| G-6-2.5 | φ2.5×TL12×φ6×L50 | 2.5 | 12 | 6 | 50 | 1 |
Use 2.0 and 2.5 mm head diameters for roughing and bulk material removal; use 1.0 and 1.5 mm head diameters for finishing, fine anatomy, and margin definition.
These burs are not for metal, zirconia, composites, or dry milling, and are not compatible with Sirona CEREC machines that use M3.5 or M1.8 threaded shanks.
They use a φ6mm smooth shank that is collet-clamped. This is the shank interface for ARUM 5X Series and Axsys Versamill 5X Series machines.
No. Sirona CEREC MC / MC X / MC XL use a proprietary M3.5 threaded shank, not a φ3.5mm or φ6mm smooth shank. CEREC 3 uses M1.8. These ARUM 6mm shank burs are not compatible with Sirona CEREC machines.
They are intended for wet milling of glass ceramics: lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo.
Larger diameters (2.0 and 2.5 mm) are typically used for bulk material removal in the roughing stage. Smaller diameters (1.0 and 1.5 mm) are suited for fine detail and finishing of occlusal anatomy, margins, and interproximal areas.
Watch for wear signs such as increased milling time, higher spindle load, chipping on restoration margins, loss of surface detail, or visible loss of diamond coating on the cutting head. Replace when these signs appear.
No. These burs are designed for wet milling only. Use them with coolant in chairside or lab wet milling workflows.
These are aftermarket burs manufactured by SINCEN Dental, a milling bur manufacturer, designed to fit ARUM 5X Series and Axsys Versamill 5X Series machines with φ6mm collet-clamped smooth shanks.
