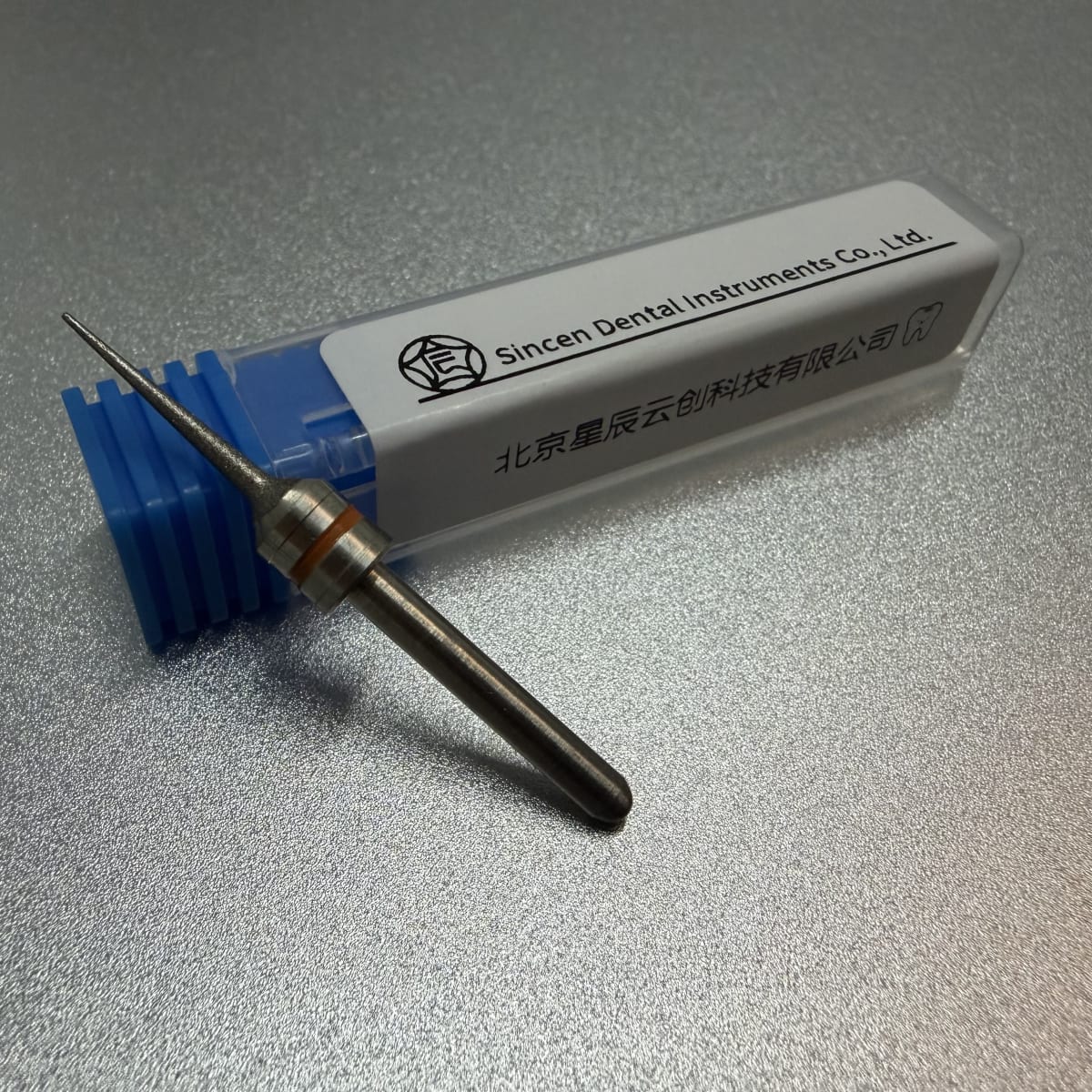

SINCEN Dental diamond-coated milling burs for Amann Girrbach systems, designed for wet milling of glass ceramics including lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. Four head diameters from φ0.4 to φ1.8 with a φ3 mm smooth shank for collet clamping, suitable for single crowns, inlays, onlays, veneers, and anterior bridges.
| Compatible Machines | Amann Girrbach |
|---|---|
| Interface Type | φ3mm Smooth Shank |
| Material Category | Glass Ceramic |
| Configurations | 4 |
| Order No | Specification | Head Ø | Neck | Shank | Length | Inquiry |
|---|---|---|---|---|---|---|
| G-3-0.4 | φ0.4×TL14×φ3×L43 | 0.4 | 14 | 3 | 43 | 1 |

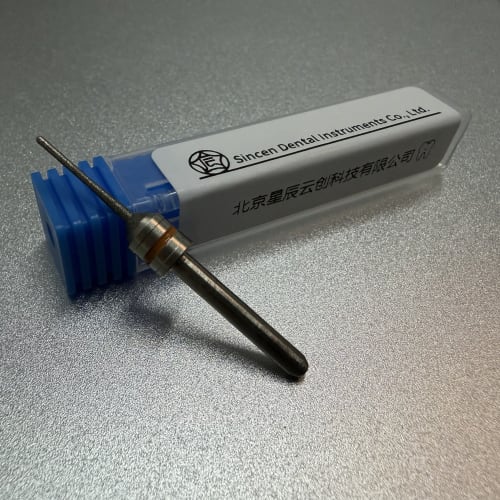

| G-3-1.0 | φ1.0×TL14×φ3×L43 | 1 | 14 | 3 | 43 | 1 |

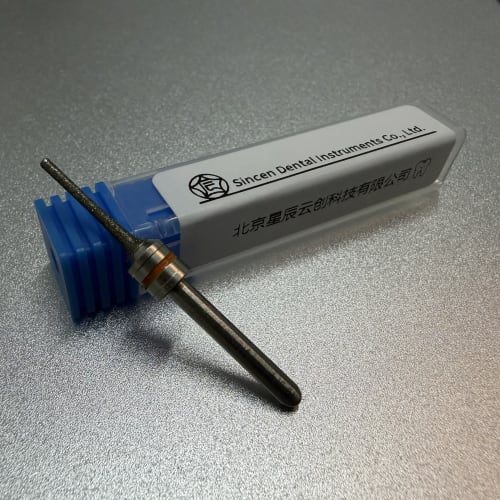

| G-3-1.4 | φ1.4×TL14×φ3×L43 | 1.4 | 14 | 3 | 43 | 1 |

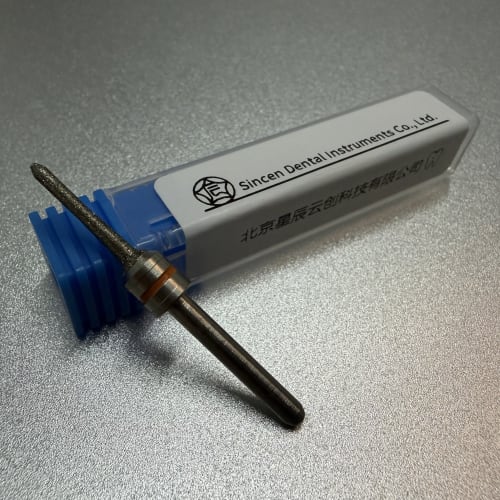

| G-3-1.8 | φ1.8×TL14×φ3×L43 | 1.8 | 14 | 3 | 43 | 1 |
The φ1.4 and φ1.8 mm head diameters are suitable for roughing and bulk material removal, while the φ0.4 and φ1.0 mm head diameters are suited for finishing, fine detail, and margin definition in wet milling of glass ceramic restorations.
These burs are not for metal, composite, or dry milling applications, and the φ3 mm smooth shank is not compatible with Sirona CEREC machines that require threaded shanks.
All four configurations use a φ3 mm smooth shank for collet-clamped mounting. This is not a threaded shank and is not compatible with Sirona CEREC MC, MC X, or MC XL machines, which require a proprietary M3.5 threaded shank.
These burs are designed for Amann Girrbach milling systems that accept φ3 mm smooth shank collet-clamped tools. Always verify your specific machine's tool holder requirements before use.
They are intended for wet milling of glass ceramics: lithium disilicate (IPS e.max), feldspathic ceramic, Vita Suprinity, and Celtra Duo. They are not for metals, composites, or dry milling applications.
Smaller diameters (φ0.4 and φ1.0 mm) are suited for fine detail and finishing of occlusal anatomy, margins, and interproximal areas. Larger diameters (φ1.4 and φ1.8 mm) are better for bulk material removal and roughing. The choice depends on the restoration type and milling strategy in your CAM software.
Monitor for visible loss of diamond coating, increased milling time, rougher surface finish on restorations, chipping at margins, or unusual vibration and noise during milling. Replace the bur when any of these signs appear.
No, these are aftermarket burs manufactured by SINCEN Dental to be compatible with Amann Girrbach machines. They are not original Amann Girrbach products.
Typical restorations include single crowns, inlays, onlays, veneers, and anterior bridges made from the supported glass ceramic materials.
